26' Wood Cat Centerboard- wood


26' Wood Cat Centerboard- wood

500.00

Design#286

 26' Wood. Cat - Centerboard.

L.O.A 26’-3” x L.W.L26’-3” x Beam 9’ x Draftx Displ. 5192Lbs.x Sail area 500 sq/ft.

            8M.                   8M.        2.80M.   730mm.       2T318         46sq/m.

 Drawing included with the purchase of plans.

DRG. 286- # 01LINES PLAN.

DRG. 286 - # 02   TABLE OF OFFSETS.

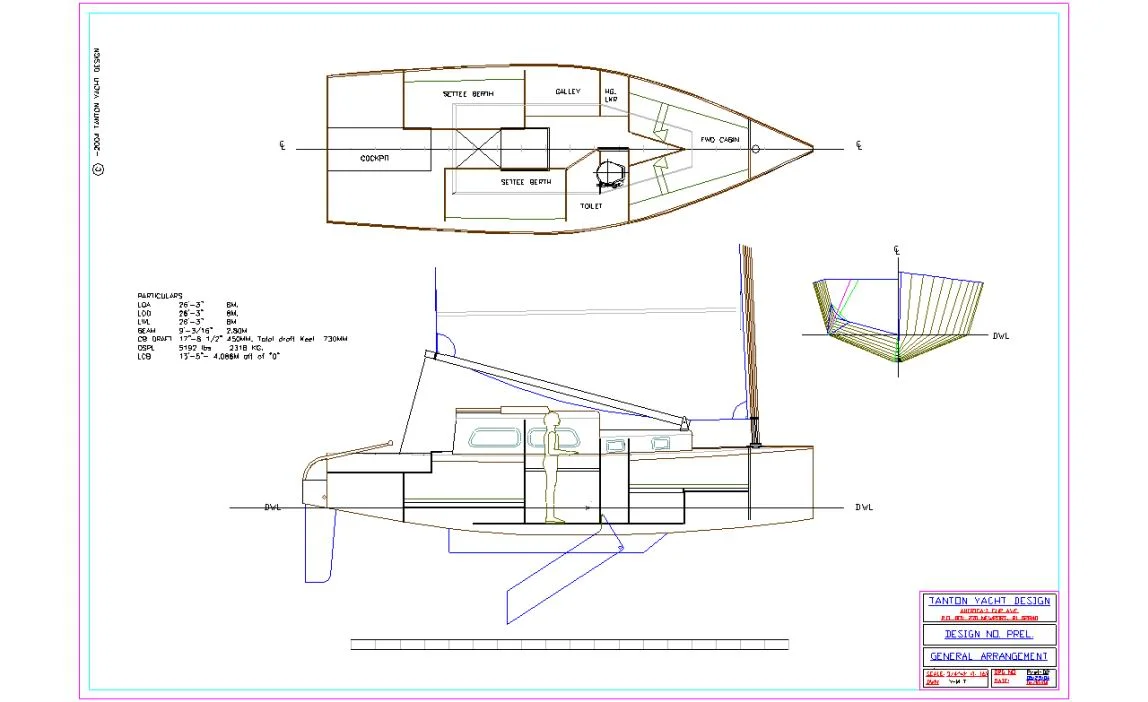

DRG. 286 - # 03   ACCOMMODATION PLAN.

DRG. 286 - # 04   MIDSHIP SECTION.

DRG. 286 - # 05   CONSTRUCTION PLAN.

DRG. 286 - # 06   DECK PLAN.

DRG. 286-  # 08   KEEL - CENTERBOARD PLAN.

DRG. 286-  # 09   RUDDER PLAN.

DRG. 286-  # 10   MAST AND RIGGING.

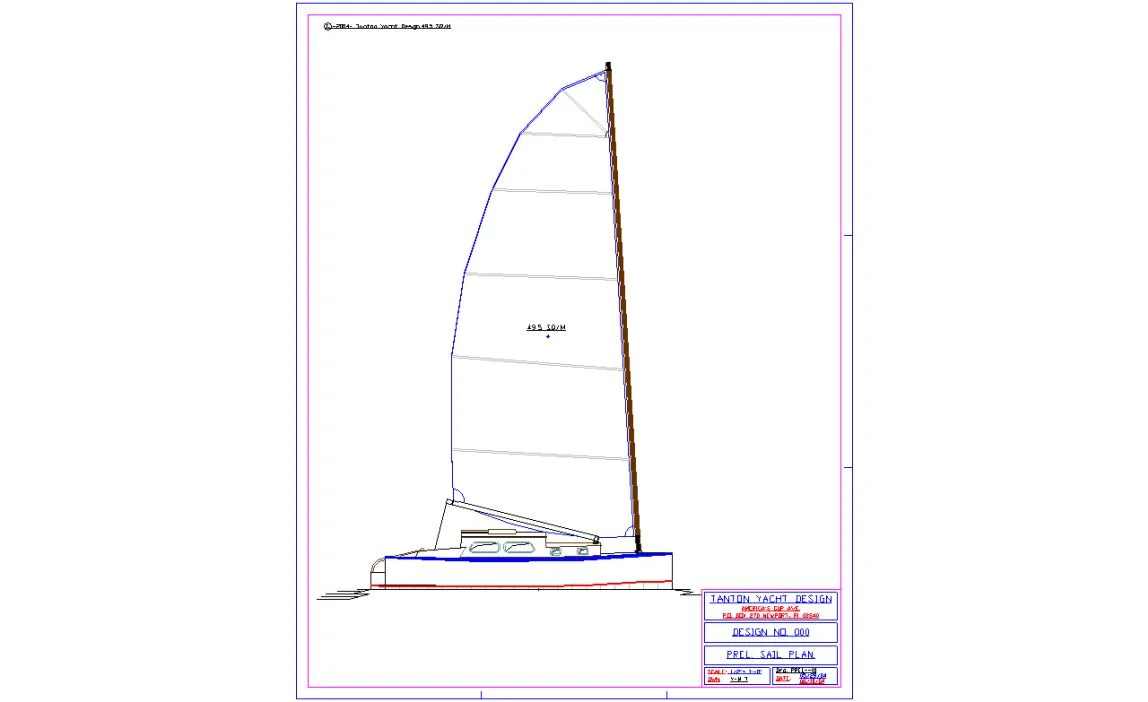

DRG. 286-   #11   SAIL PLAN.

US$500.00. Buy.

Add To Cart
