31' IMAGIRO #285 - steel.
31' IMAGIRO #285 - steel.
Design# 285IMAGIRO 31.5'
STEEL, FINKEEL OR TWIN KEELS, AFT COCKPIT, TRUNK CABIN, IMPERIAL & METRIC SCALES.
L.O.A 31’-4 3/16” x L.W.L 28’ x Beam 10’-7 3/16” x Draft fin 4’-11” Twin keels 4’-6” x Displ. 13227 Lbs.
9.55M. 8.54M. 3.23M. 1.50M. 1.37M. 6T.
DRAWINGS INCLUDED WITH THE PURCHASE OF PLANS.

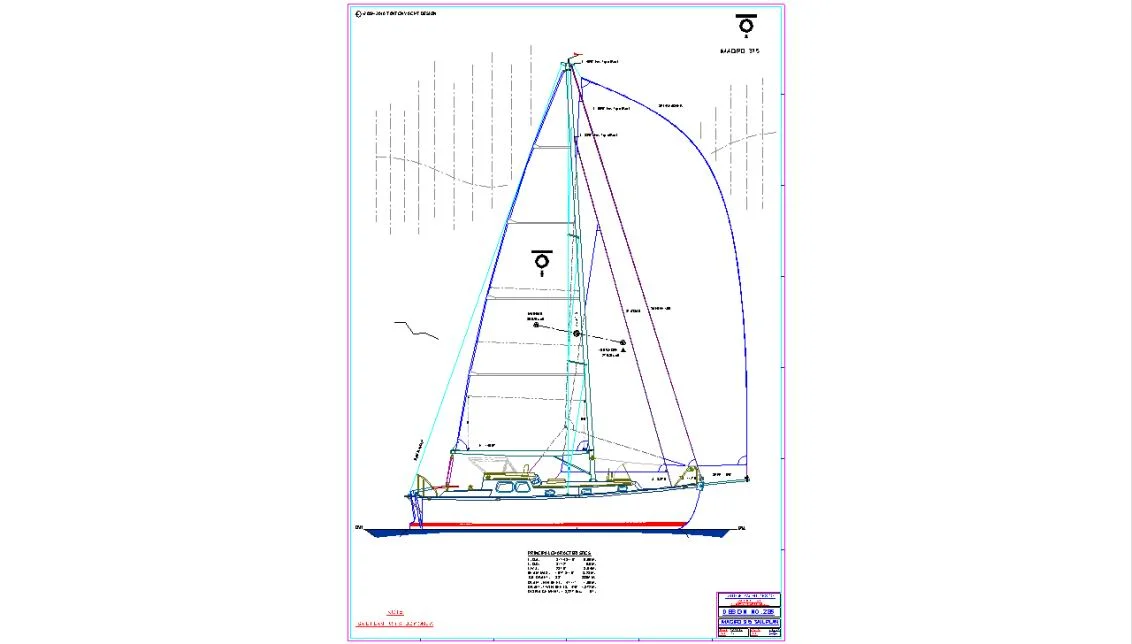

DRG. 285 - # 01SAIL PLAN. (slp) 3/8"= 1'-0" 1: 32

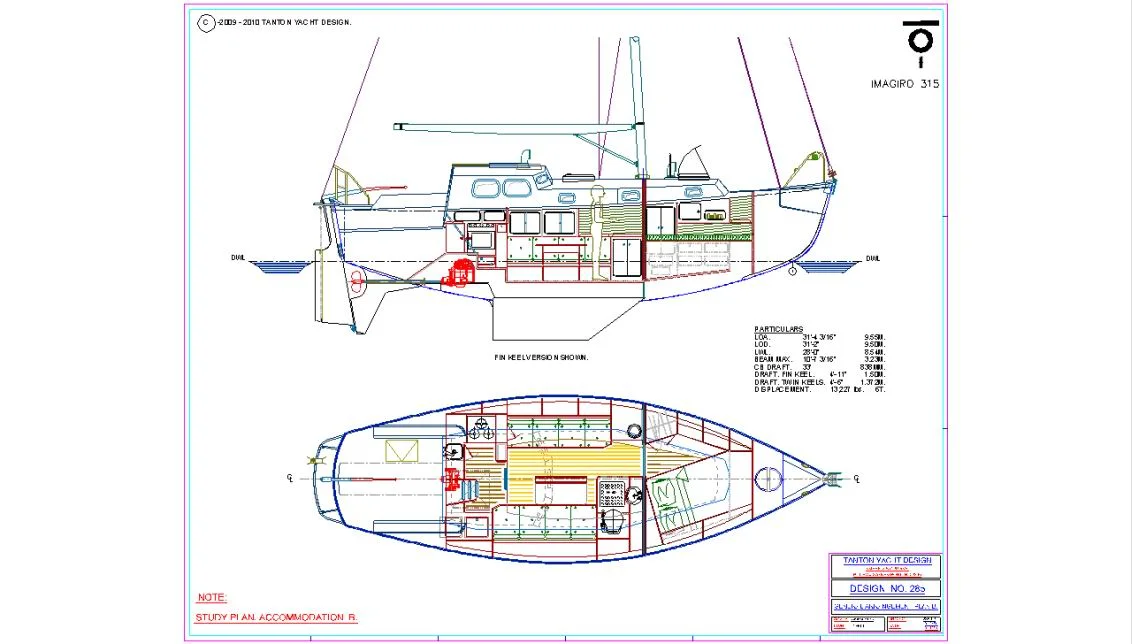

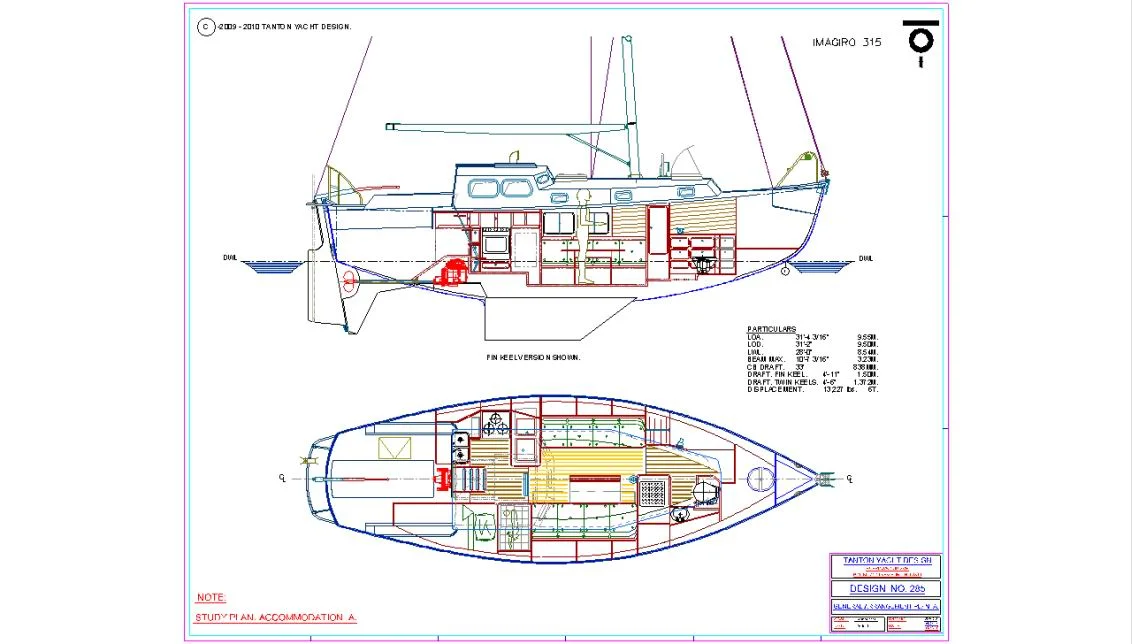

DRG. 285 - # 02GENERAL ARRANGEMENT. (gap) 3/4"=1'-0" 1: 16
DRG. 285 - # 03 STEELLAYOUT PATTERN. (plg) " " " "
DRG. 285 - # 04 MIDSHIP SECTION. (mscf; msct) 1 1/2"= 1'-0" 1: 8
DRG. 285 - # 05 CONSTRUCTION PLAN. (cpl) 3/4" = 1'-0" 1:16. Shell thickness 5mm. (4mm. if available).
DRG. 285 - # 06 DECK PLAN. (dck) 3/4" = 1'-0" 1:16. Thickness. 3mm.
DRG. 285 - # 07 KEEL PLAN. (fkl; tkl) " " " ".Twin keel or Fin Keel.
DRG. 285 - # 08 RUDDER PLAN. (rdr) " " " "
DRG. 285 - # 09 MAST AND RIGGING. (mr) 3/8"=1'-0" 1: 32
DRG. 285 - # 10 DETAILS. (fm.#231) (231) various.

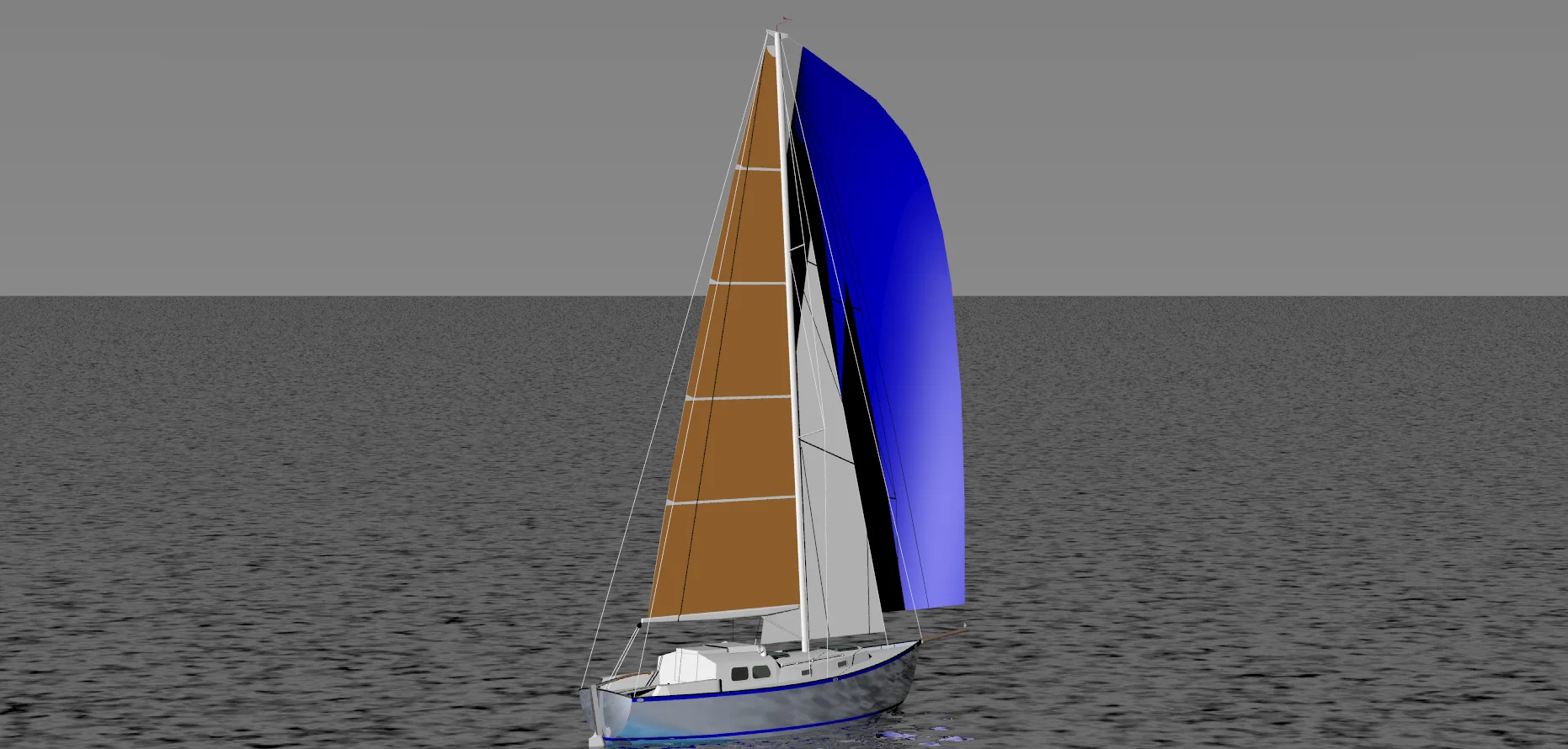

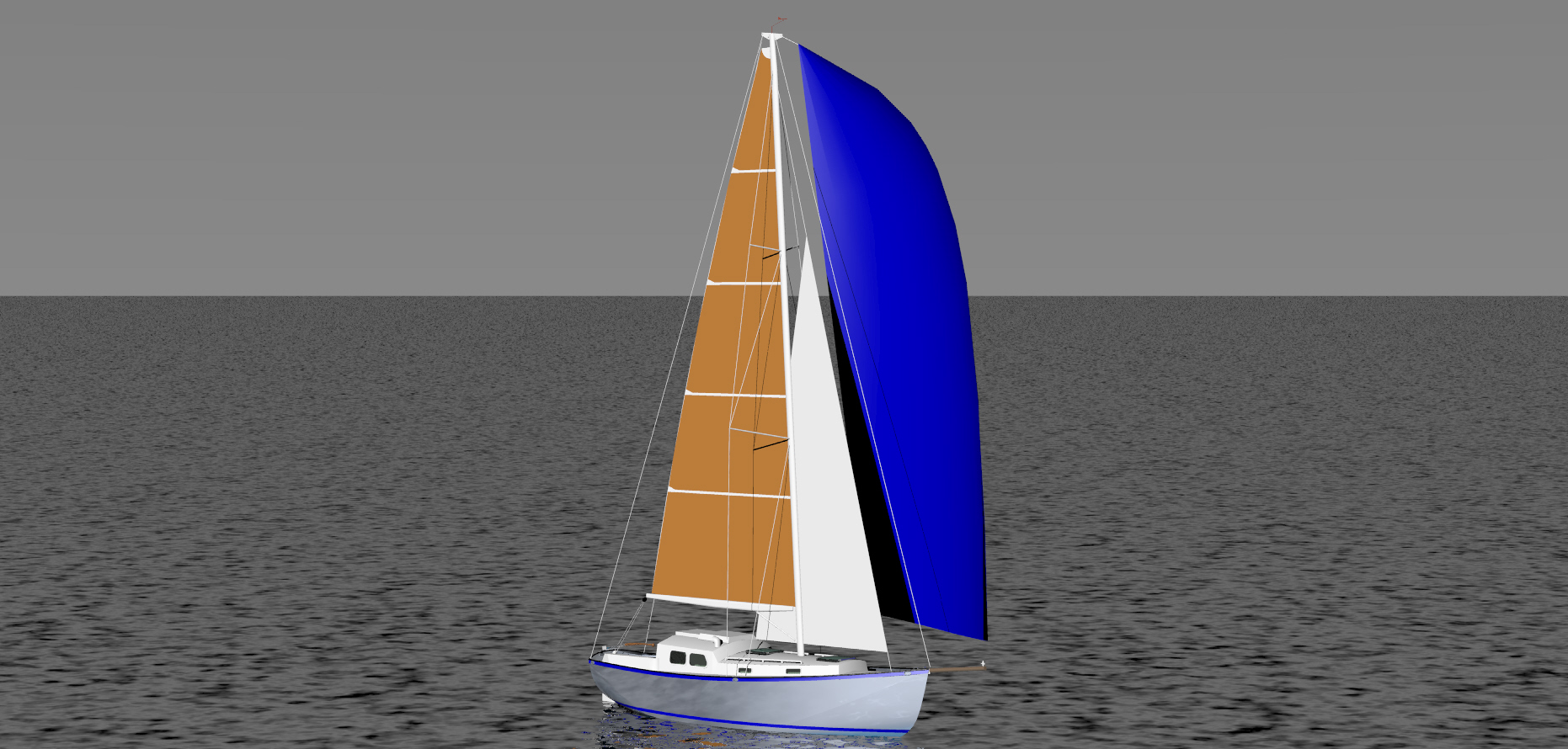

DRG. 285 - # 11 MODEL. (mdl) no scale.
Price for Plans are subject to change without notice.
