34'10" MBCC - strip plank construction
34'10" MBCC - strip plank construction
Design # 225 MBCC.
Plans are for Wood; strip planking construction.
L.O.A34’-10” x L.W.L 34’-6” x Beam 12’-6” x Draft5’-6” x Displ. 20455 Lbs. X Sail Area. 1040 sq/ft. Bermudan rig.
10.62M. 10.52M. 3.81M. 1.68M. 9T278. 96.7 sq/m.
Drawings included with the purchase of plans.

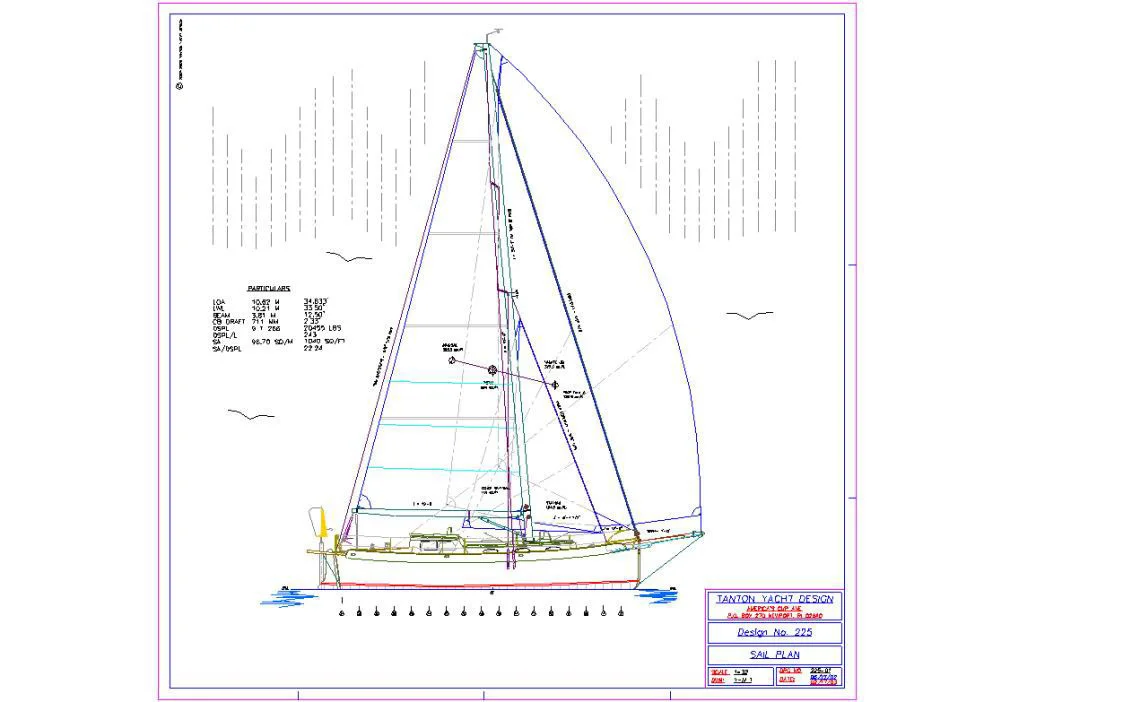

DRG. 1- SAIL PLAN
DRG. 2- MAST & RIGGING
DRG. 3- LINESPLANS - TABLE OF OFFSETS.

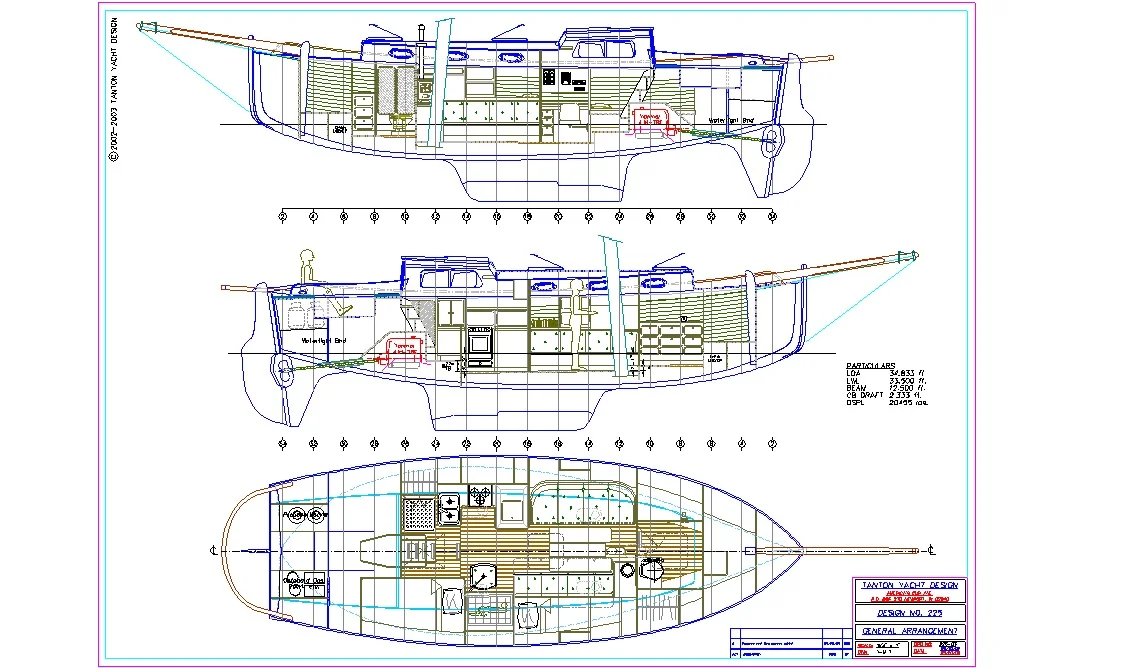

DRG. 4- ACCOMMODATION PLAN.

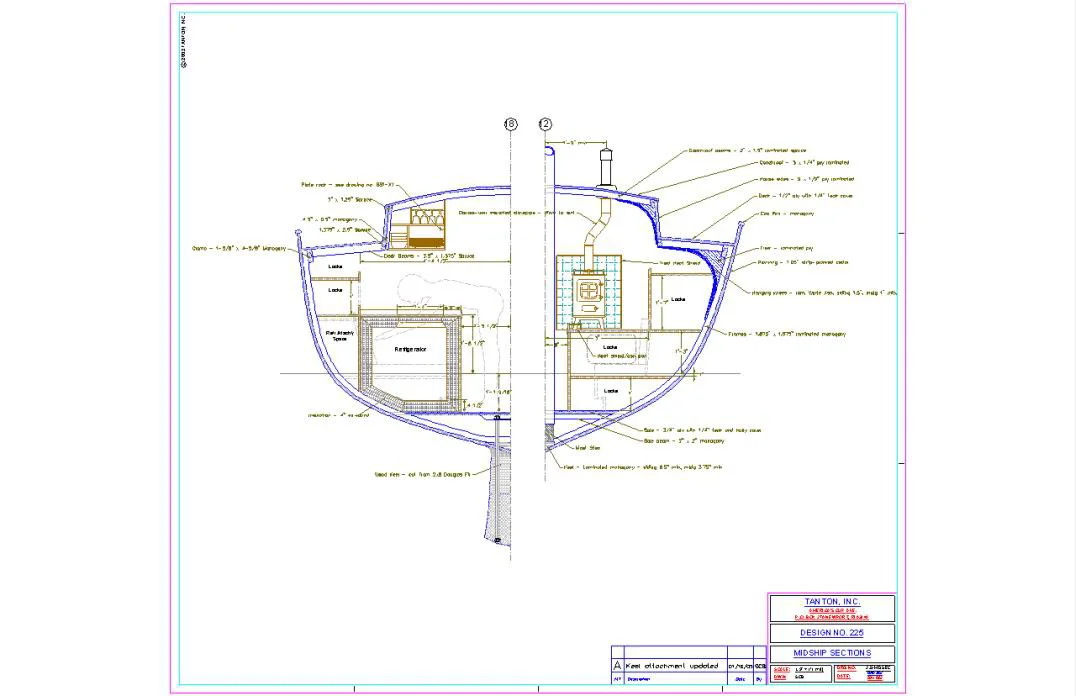

DRG. 5- MIDSHIP SECTION CONSTRUCTION PLAN.
DRG. 6- JOINERY SECTIONS
DRG. 7- CONSTRUCTION PLAN.
DRG. 8- DECK PLAN.
DRG. 9- KEEL PLAN (Lead Ballast 4137.5 kg.)
DRG. 10- RUDDER PLAN.
DRG. 11- CHAINPLATES.
DRG. 12- TANKS
DRG. 13- DETAILS.

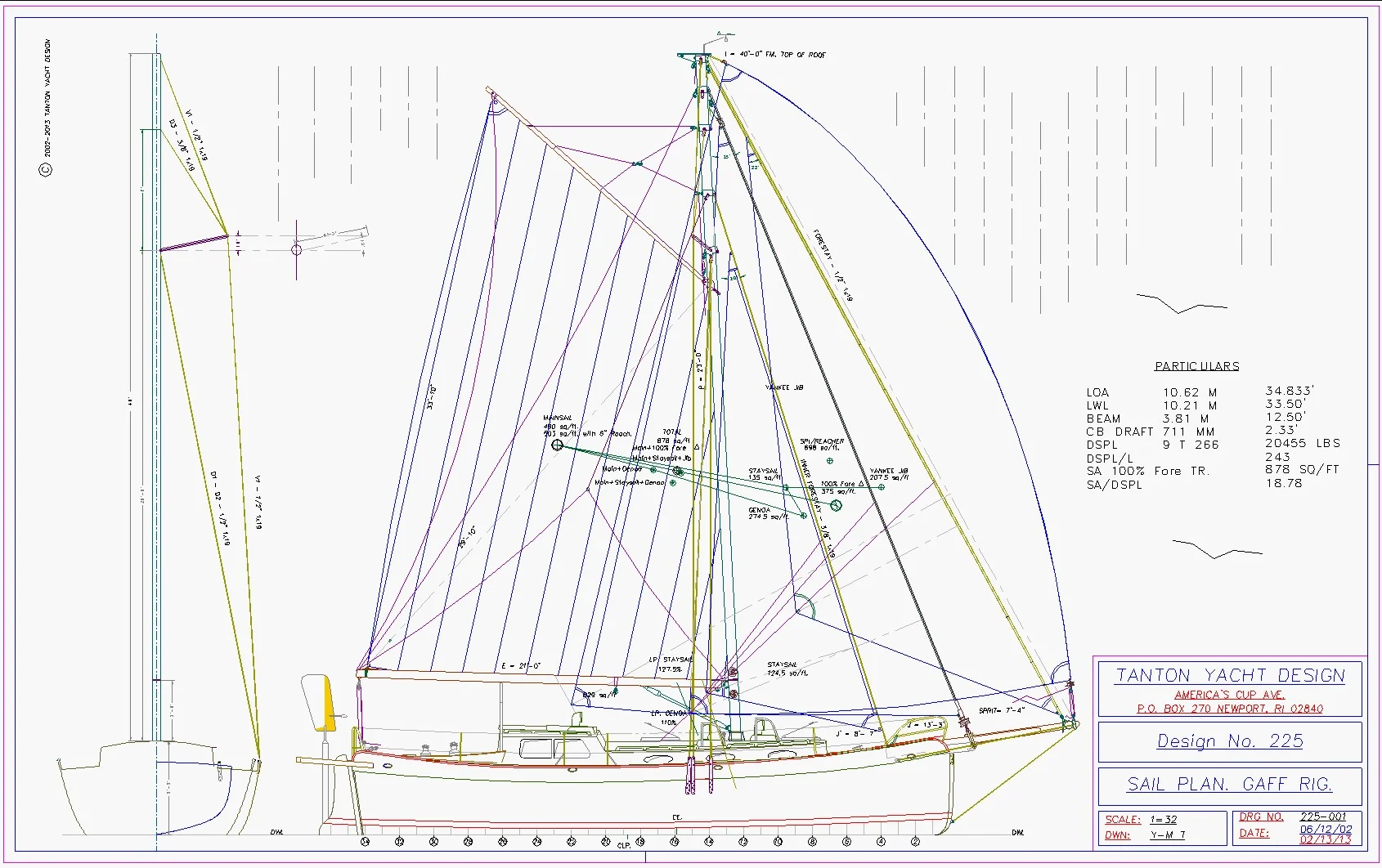

DRG. 14- GAFF-RIG. (new)
US$2,995.00
Price for Plans are subject to change without notice.
