35' Redline

958AluHull (1).jpg
958AluHull (1).jpg

35' Redline

500.00

DESIGN # 958

Steel or Aluminum.

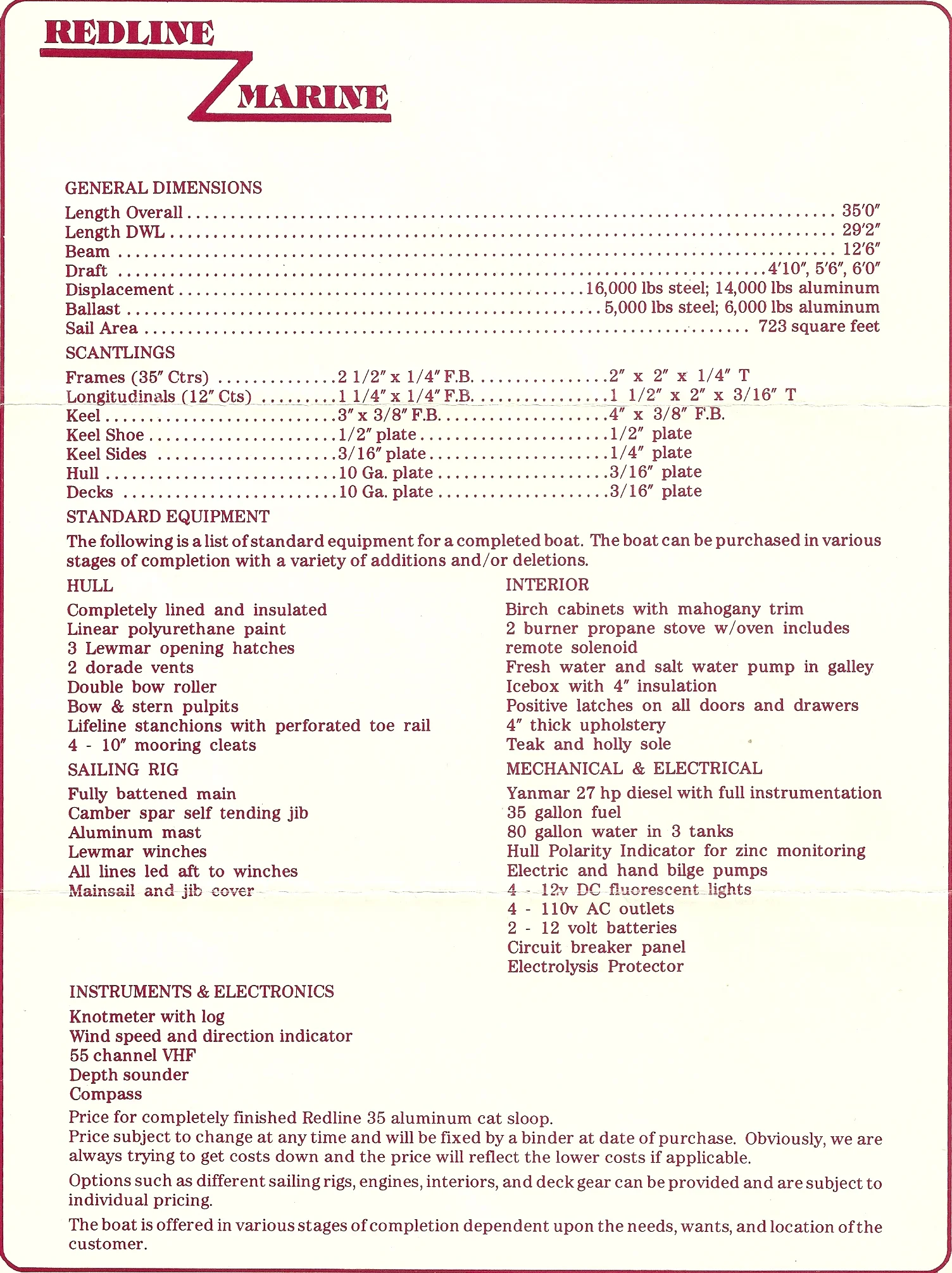

L.O.A 35'-0"; L.W.L 29'-0"; Beam 12'-6"; Draft 5'-6"; Displacement 16000 lbs.; Ballast5500 lbs.; Sail Area 616 sq./ft.

 10,67m     8,84m      3,81m     1,68m     7t. 248      2t.491       57.2 sq.m

Plans for this Double chine, free- standing sloop rig, include the following sheets.

Drg.   821-01   Information Plan. Plumbing. Tankage.

Drg.   821-02   Lines Plan and Table of Offsets.

Drg.   821-03   Electrical schematic.

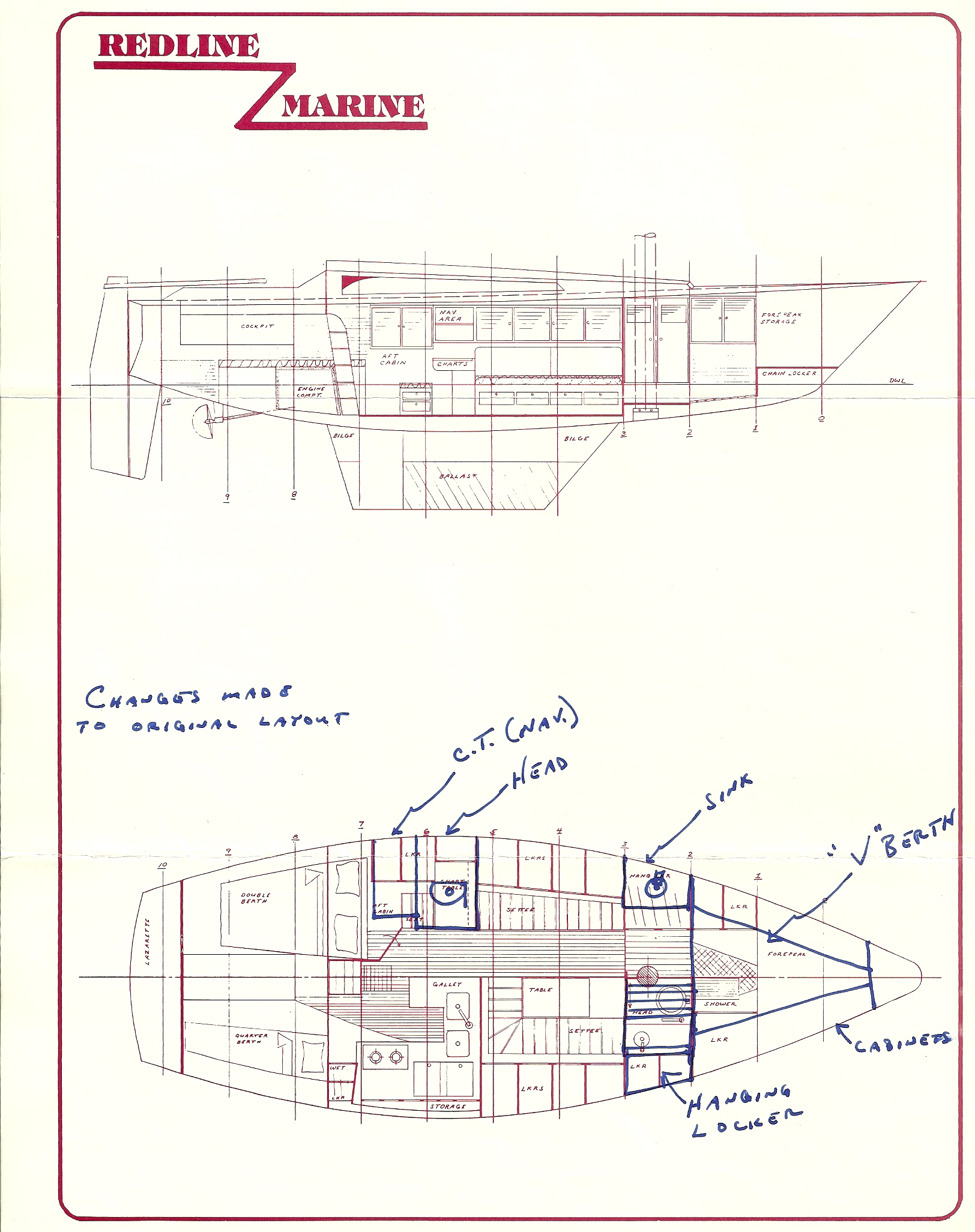

Drg.   821-04   Accommodation Plan A.

Drg.   821-05  Accommodation Plan B.

Drg.   821-06  Sections.

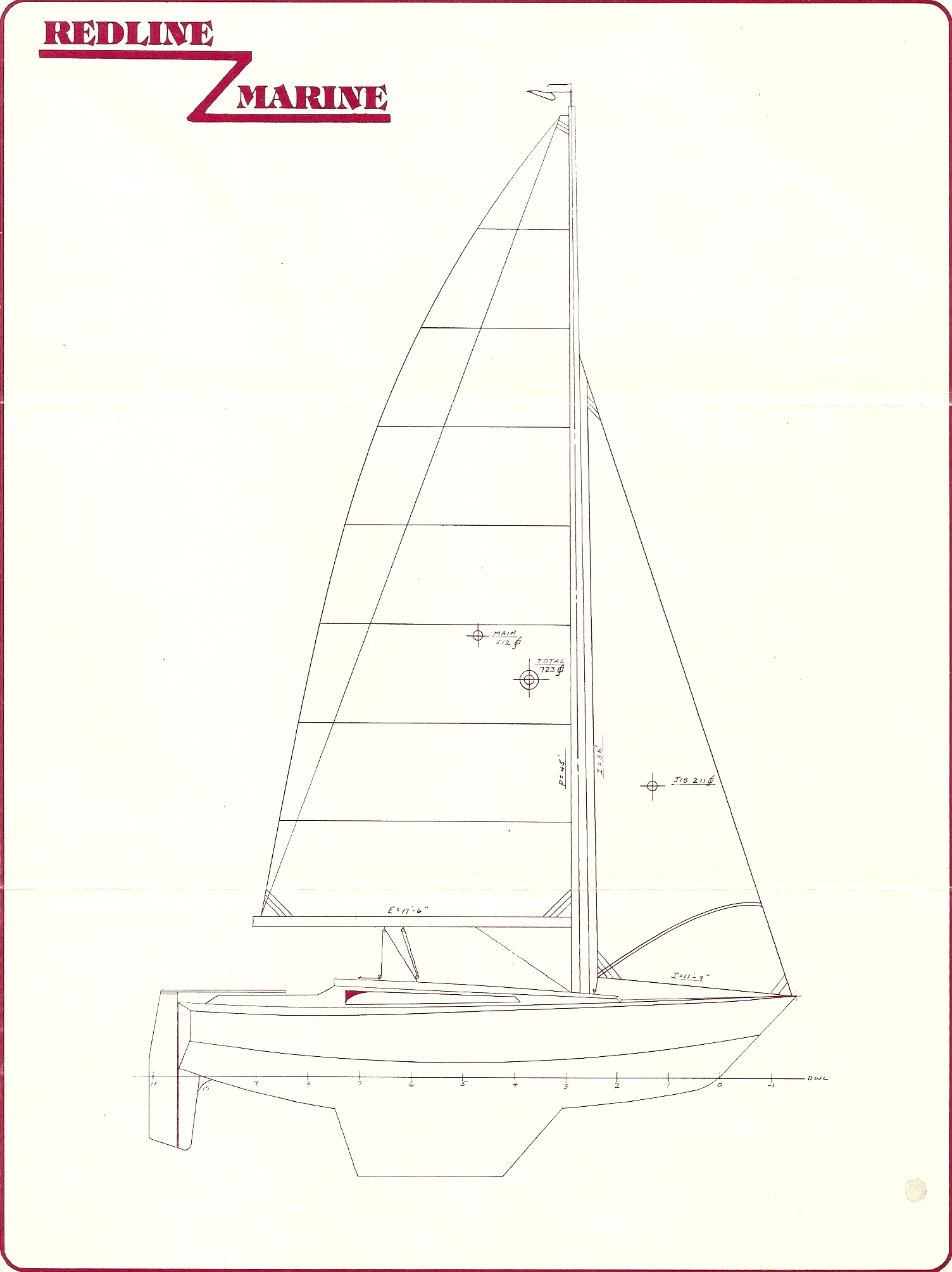

Drg.   821-07  Sail Plan. Mast Plan.

Drg.   821-08     Deck Plan.

Drg.   821-09     Aluminum construction plan.

US$500.00. Buy.

Add To Cart
