For the DIY-er Yves-Marie has assembled a collection of boat plans designed for the home boat builder for those that prefer their own craftsmanship. Easy to follow plans, all of the information you'll need, and well thought out designs. If you should require further consultation Yves-Marie is available for design alterations, and advice should you need it.
35' TAHITI - steel
35' TAHITI - steel
Design. #821.
TAHITI REVISITED.

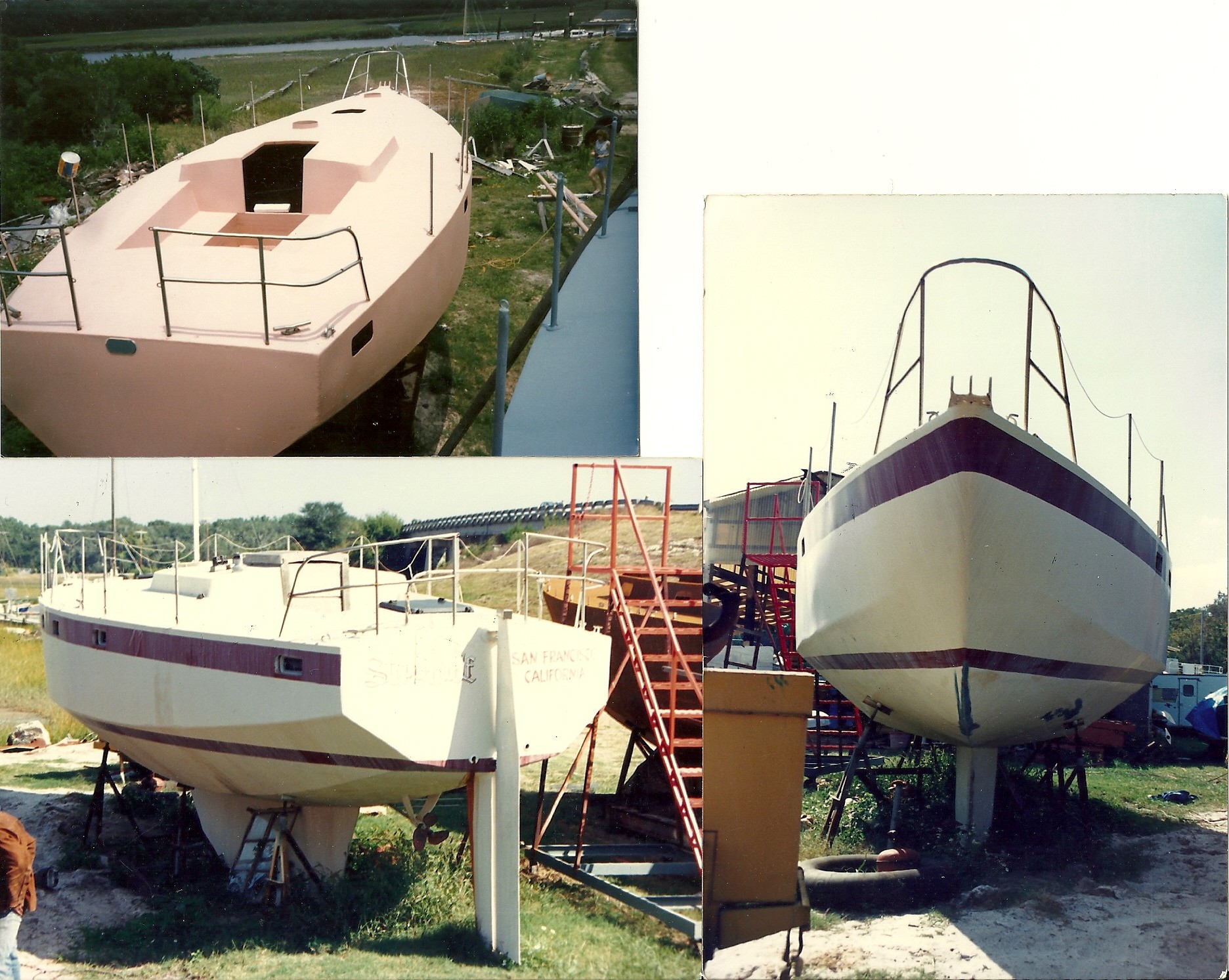

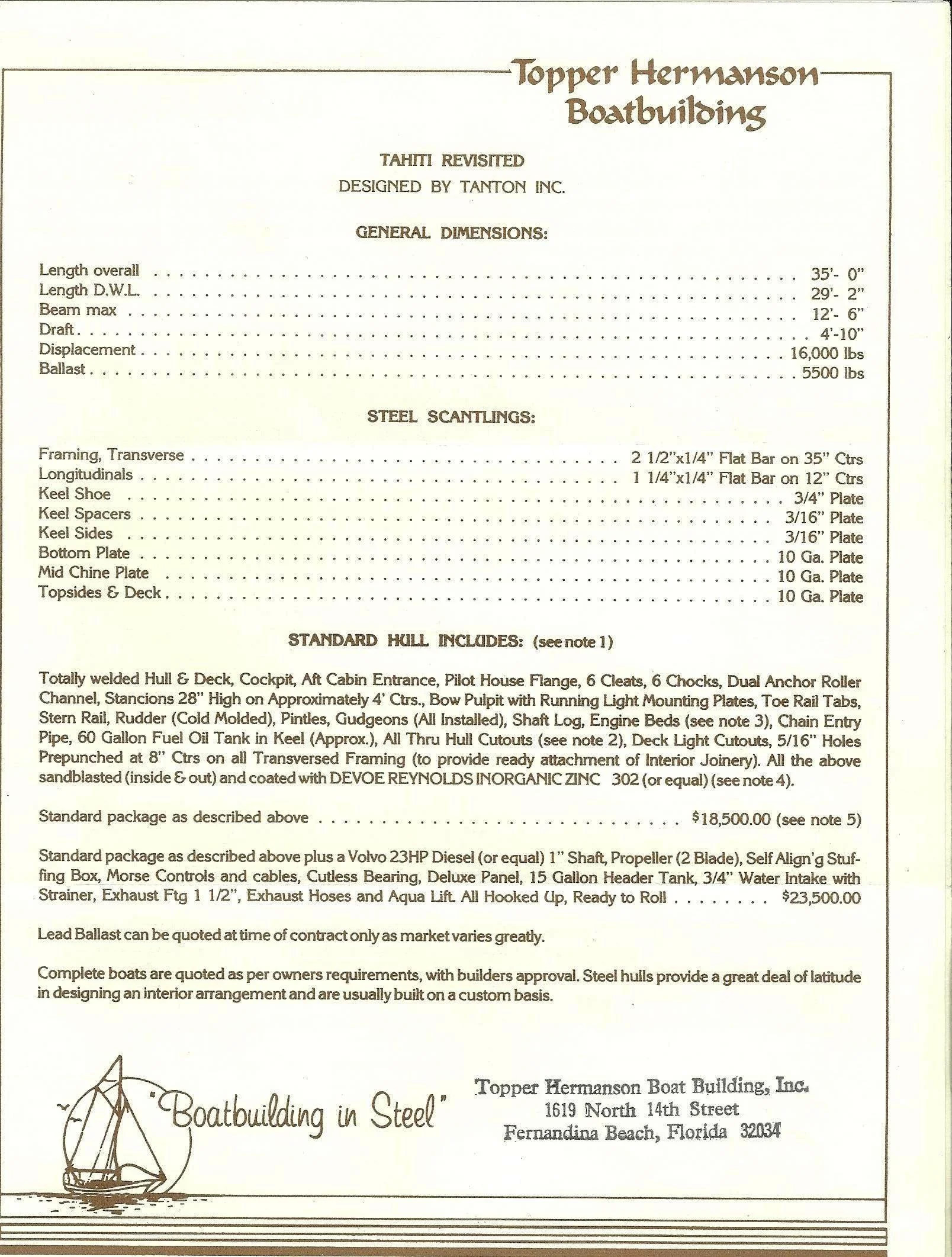

L.O.A 35'-0"; L.W.L 29'-0"; Beam 12'-6"; Draft 5'-6"; Displacement 16000 lbs.; Ballast5500 lbs.; Sail Area 616 sq./ft.
10,67m 8,84m 3,81m 1,68m 7t. 248 2t.491 57.2 sq.m
Plans for this Steel double chine, free- standing cat-ketch include the following sheets.
Drg. 821-01 Information Plan. Plumbing. Tankage.
Drg. 821-02 Lines Plan and Table of Offsets.
Drg. 821-03 Electrical schematic.

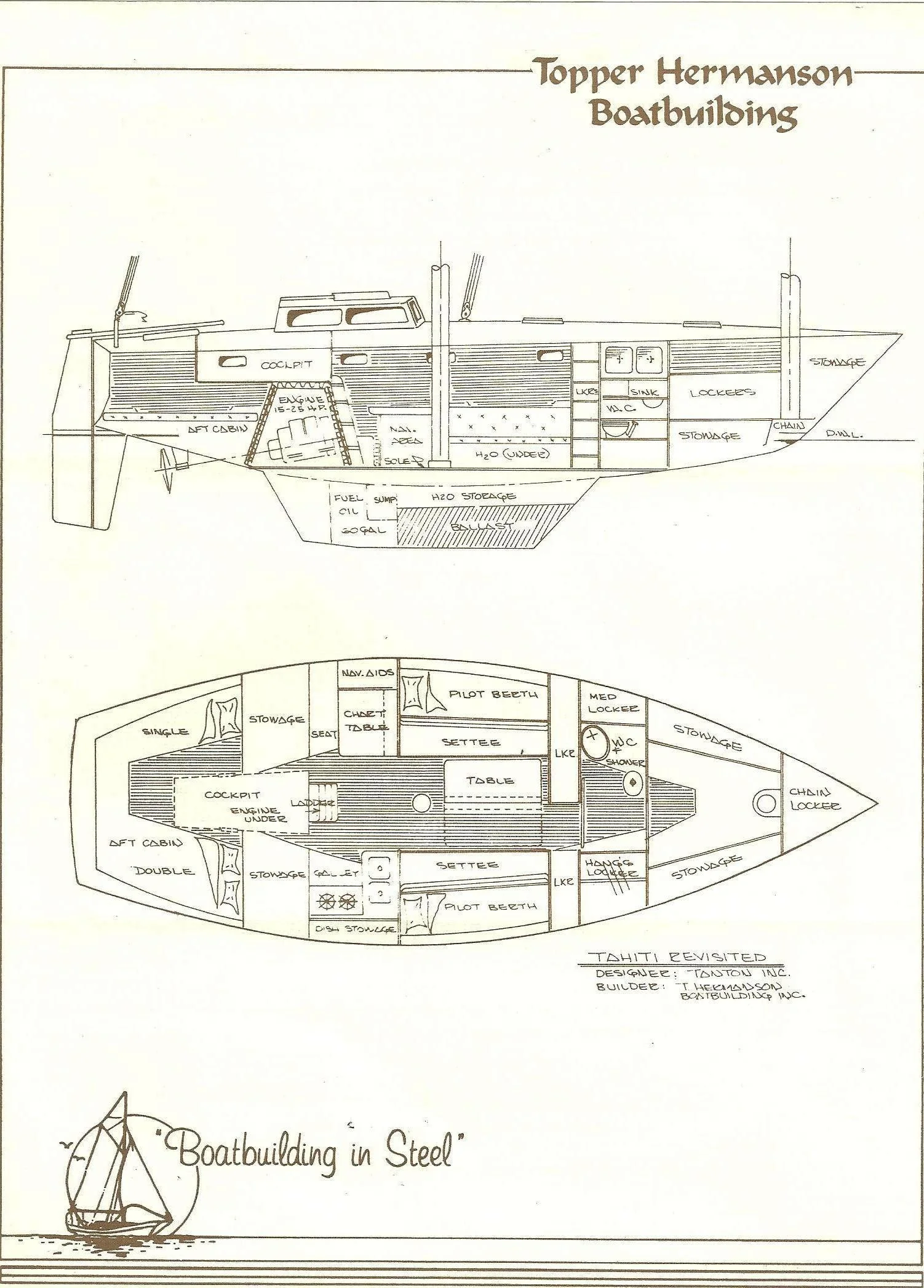

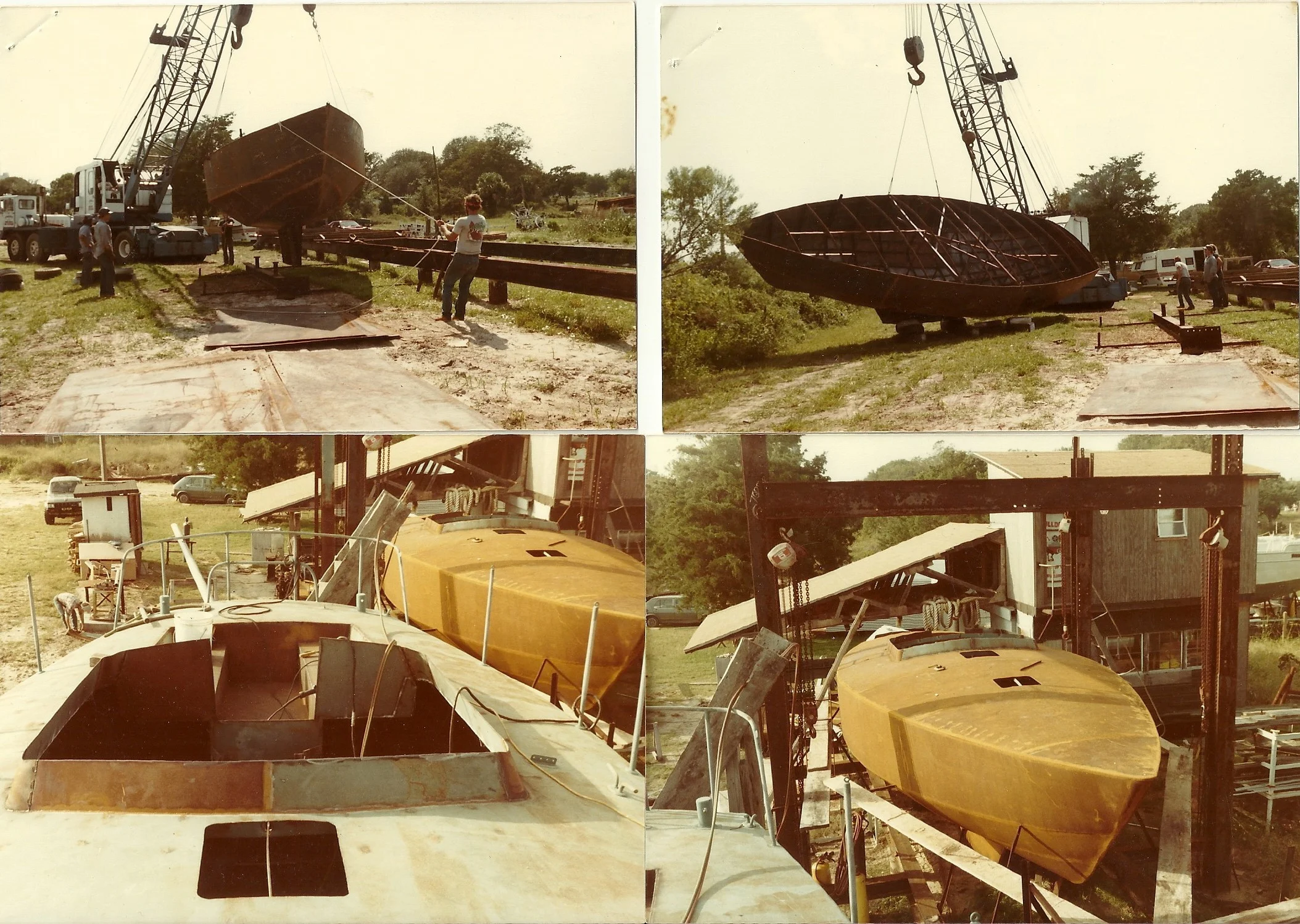

Drg. 821-04 Steel Construction plan. Accommodation Plan.
Drg. 821-05 Accommodation Plan B.
Drg. 821-06 Sections.

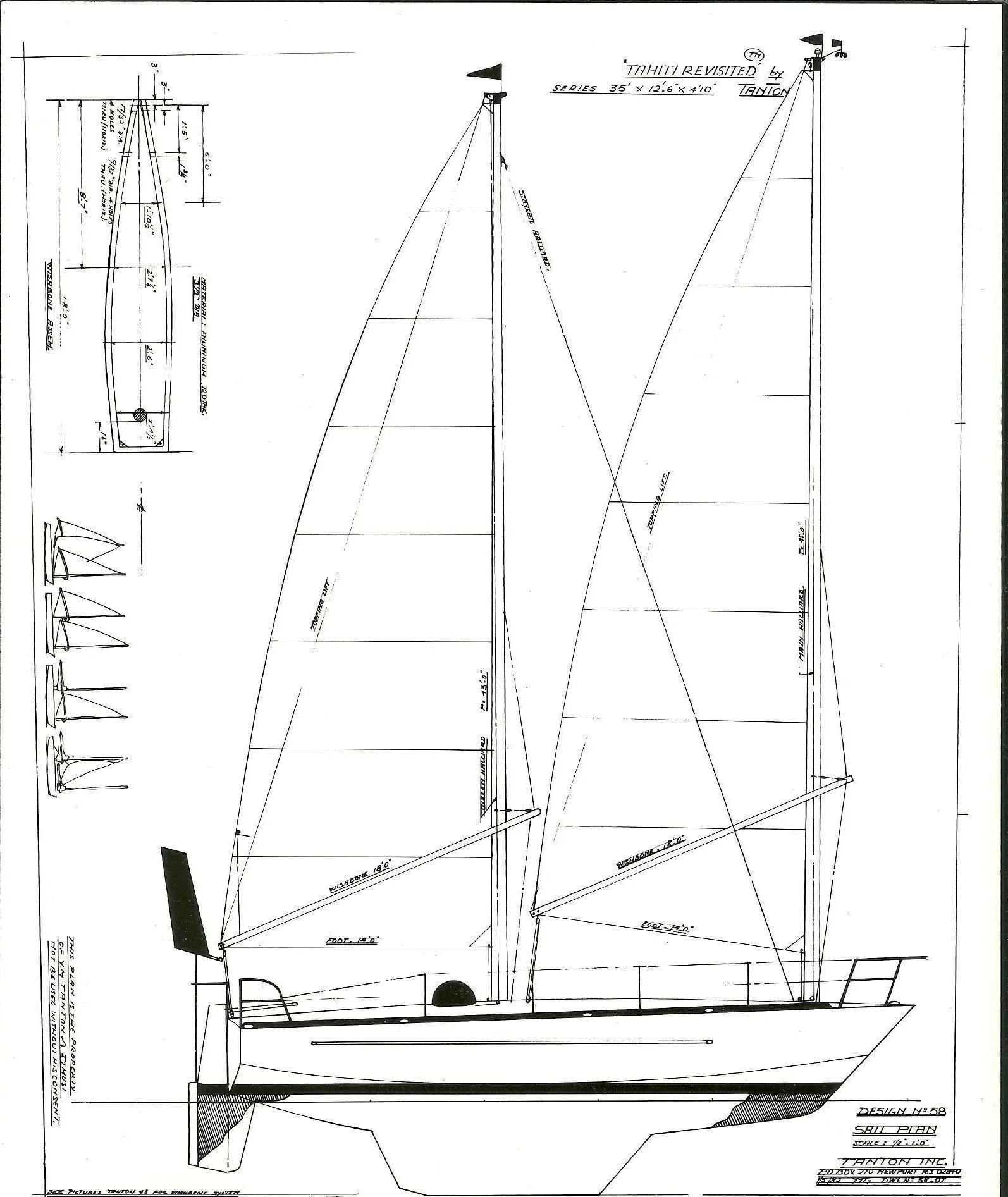

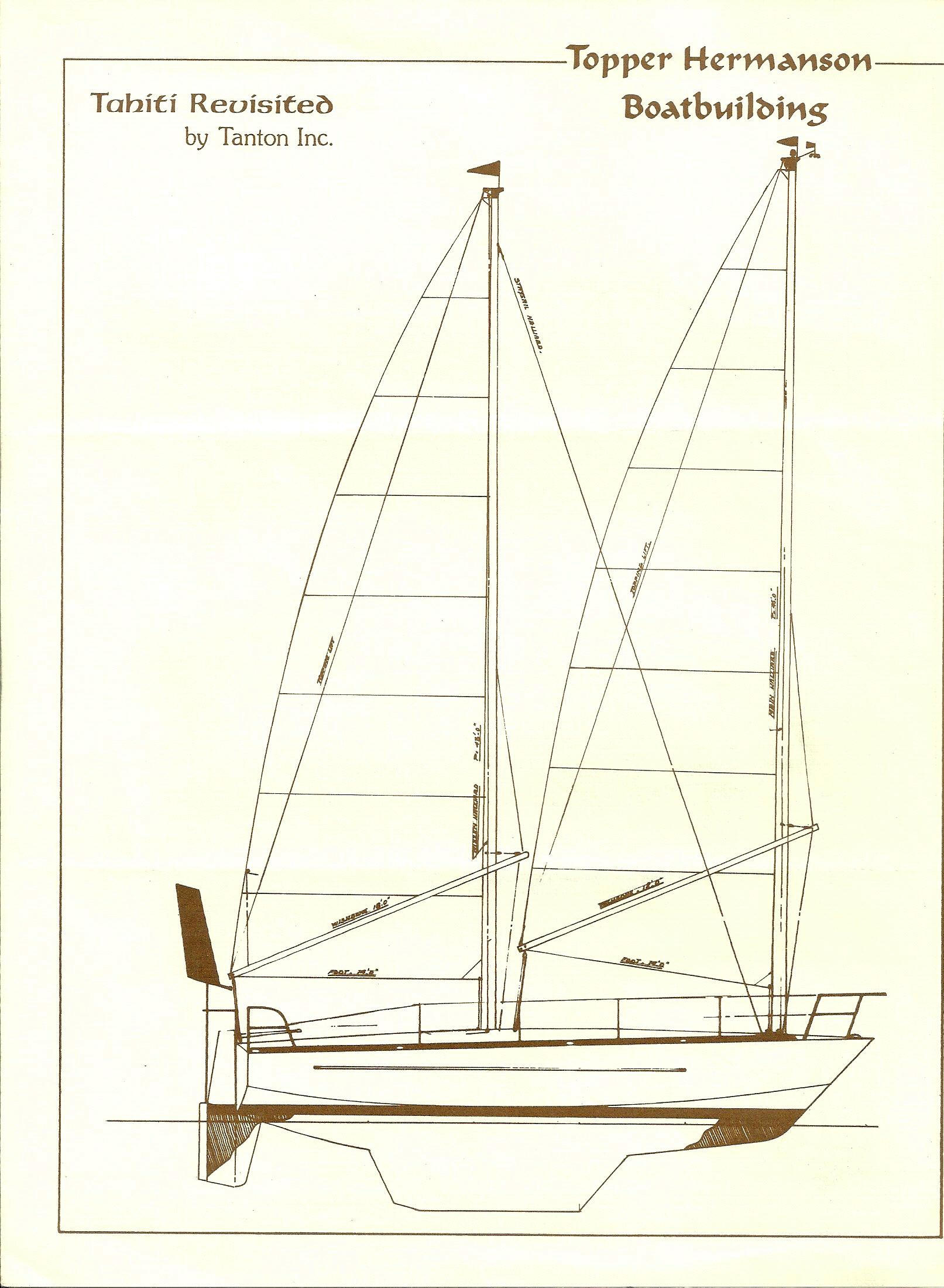

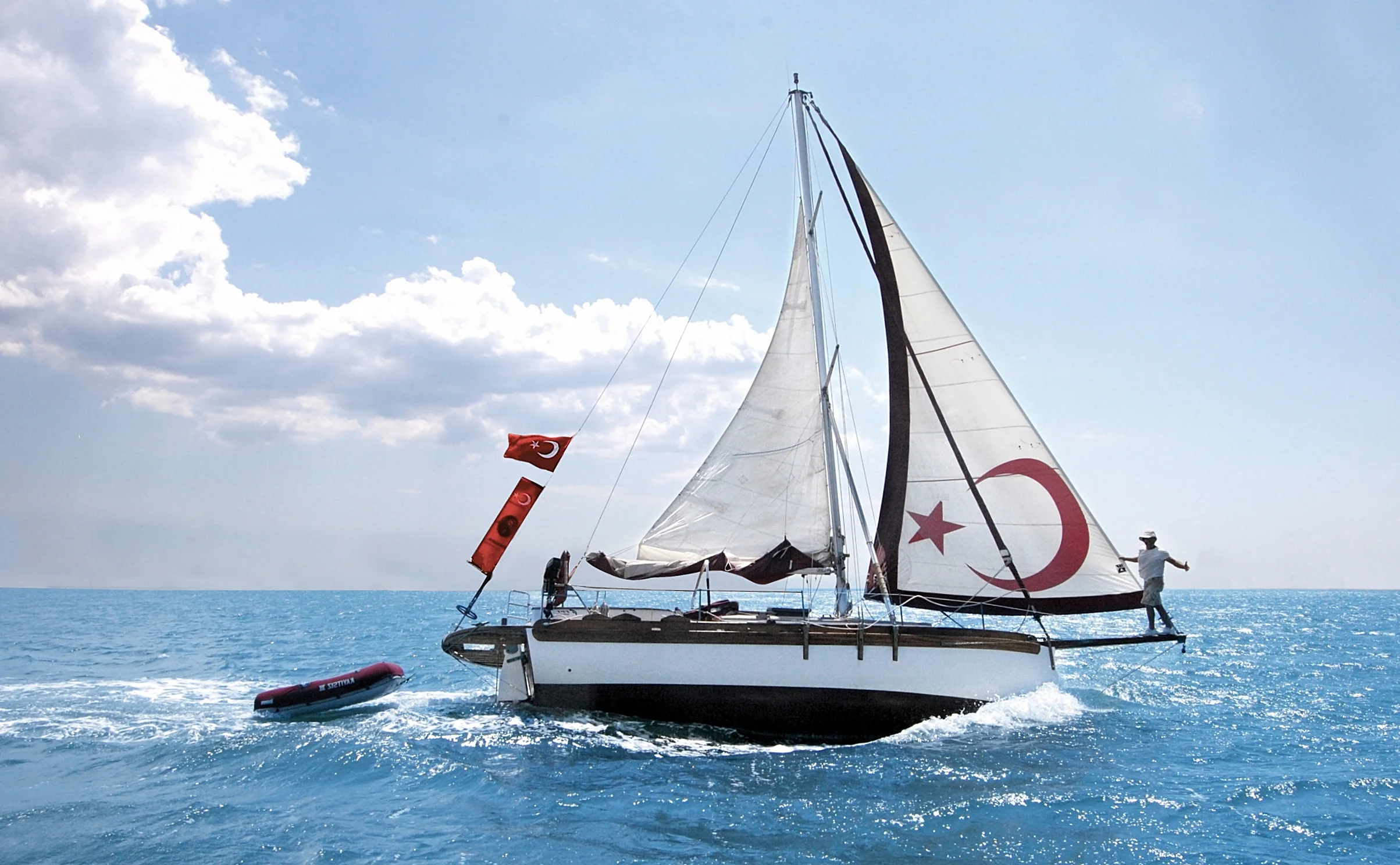

Drg. 821-07 Sail Plan. Masts Plans.
Drg. 821-08 Deck Plan.
US$1,995.00
