39' IMAGIRO #229 - steel
39' IMAGIRO #229 - steel
DESIGN N0. 229.
IMAGIRO 39. STEEL.
L.O.D 39’-8 ½” x L.W.L 34’-0” x Beam 12’-0 ½” x 5’-3” x Dspl. 24.550lbs. xSail area. 875 sq/ft.
12.10M 10.36M. 3.67M. 1.60M. 11T.134 81sq/m.
DRAWINGS INCLUDED WITH THE PURCHASE OF PLANS.
DRG. 229 - # 01 SAIL PLAN.

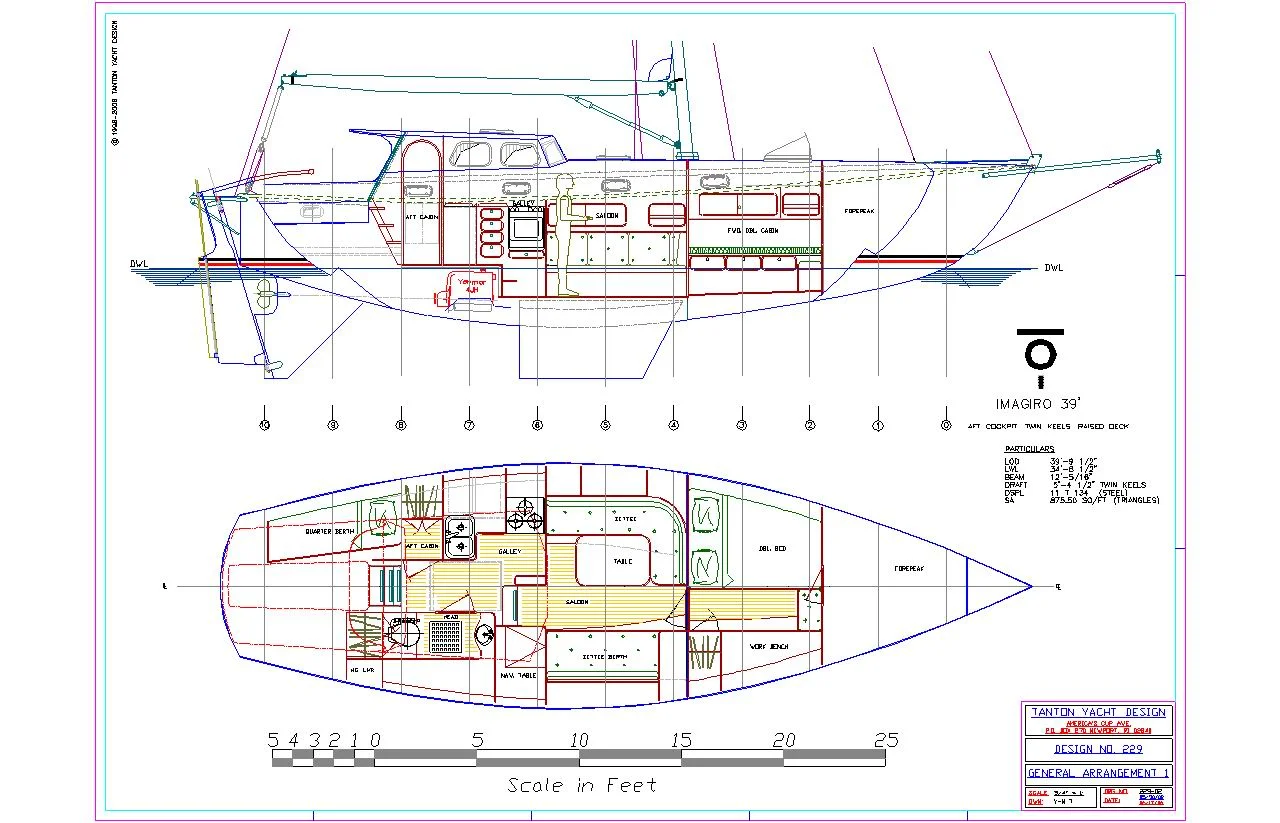

DRG. 229 - # 02GENERAL ARRANGEMENT.

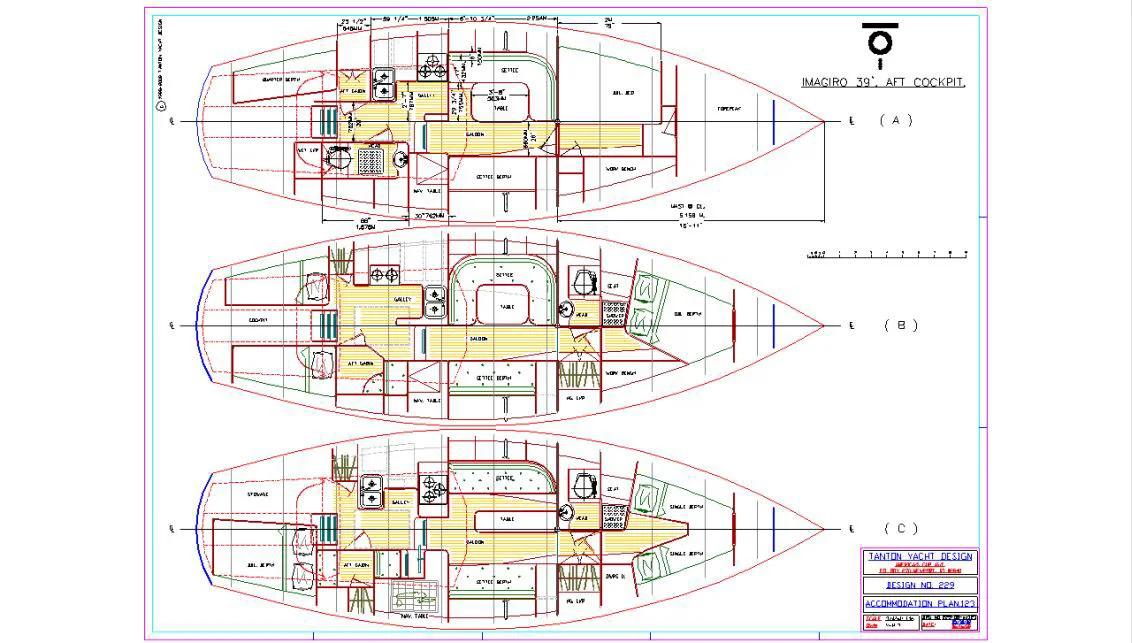

DRG. 229 - # 03ACCOMMODATION PLANS 123
DRG. 229 - # 04STEELLAYOUT PATTERN.
DRG. 229 - # 05MIDSHIP SECTION.
DRG. 229 - # 06CONSTRUCTION PLAN.
DRG. 229 - # 07DECK PLAN.
DRG. 229 - # 08KEEL PLAN.
DRG. 229 - # 09RUDDER PLAN.
DRG. 229 - # 10 MAST AND RIGGING.
DRG. 231 - DETAILS. (FM.TYD#231)
US $1,000.00. Buy.
