41'-6" Steel "ARTICA"
41'-6" Steel "ARTICA"
Design#990. ARTICA 39'
Length 41’-6” includes platform and rudder.
12.65M.
L.O.A 39’-5” x Length on deck 38’-7” x L.W.L 36’-6 ½”
Plans for this Steel Trawler Yacht include the following sheets.
Drg. 990-01 Interior No.1

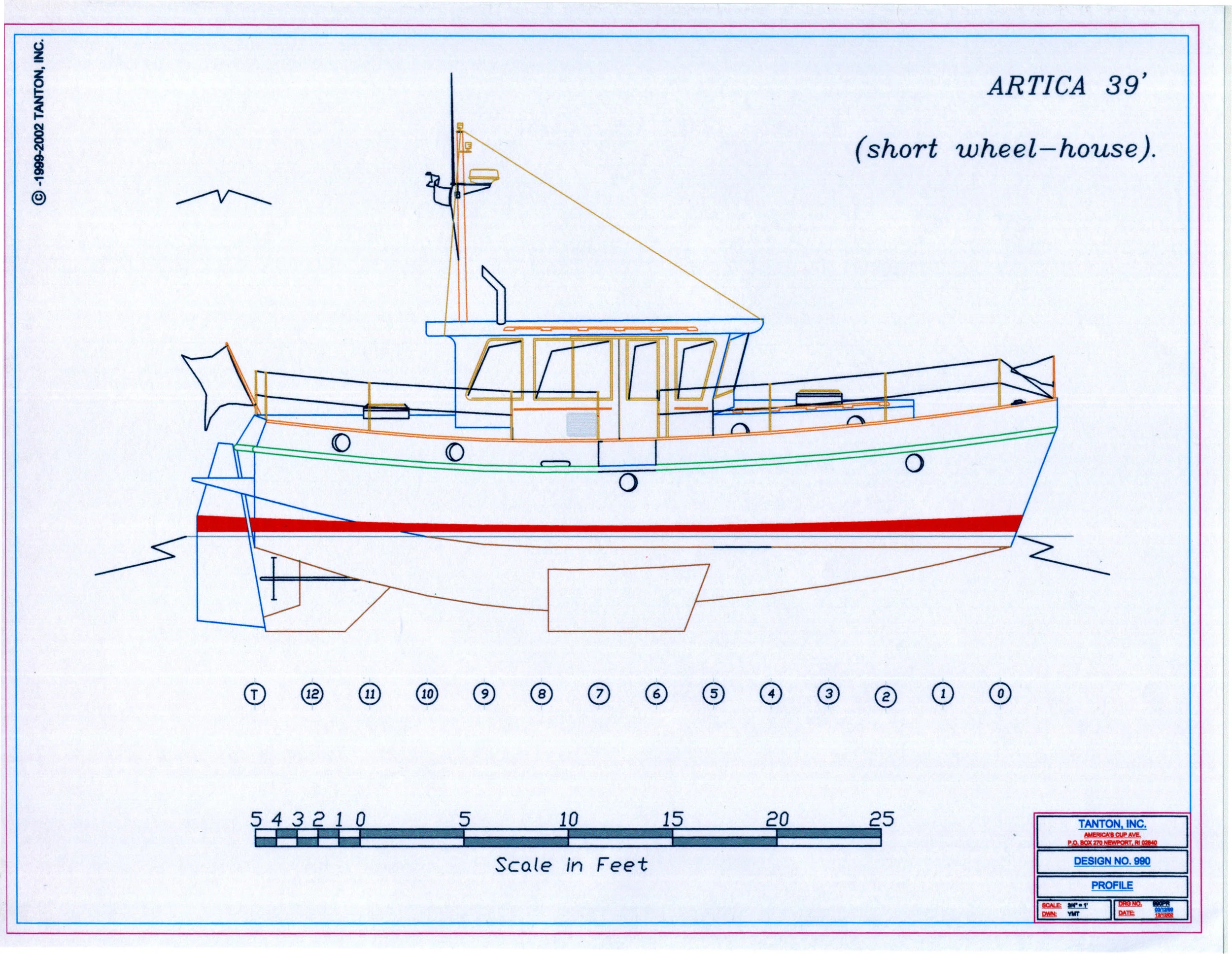

Drg. 990-02 Profile.
Drg. 990-03 Lines Plan and Table of Offsets.
Drg. 990-04 Steel Construction Plan.
Drg. 990-05 Construction Sections.
Drg. 990-06 Construction Details.
Drg. 990-07 Deck Details.
Drg. 990-08 Rudder Plan.
Drg. 990-09 Keel Plan.
Drg. 990-10 Tank Layout.
Drg. 990-11 Sail Rig Details
US$2,000.00
