33' Single Chine Cutter - steel


33' Single Chine Cutter - steel

500.00

Design. #231.

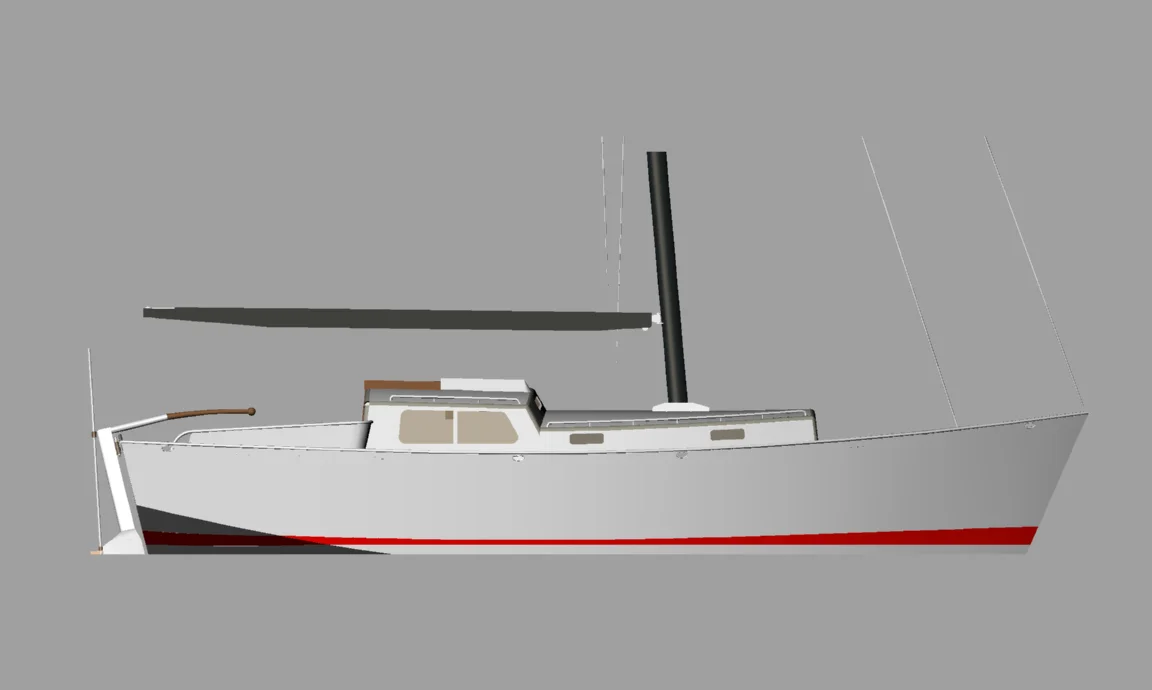

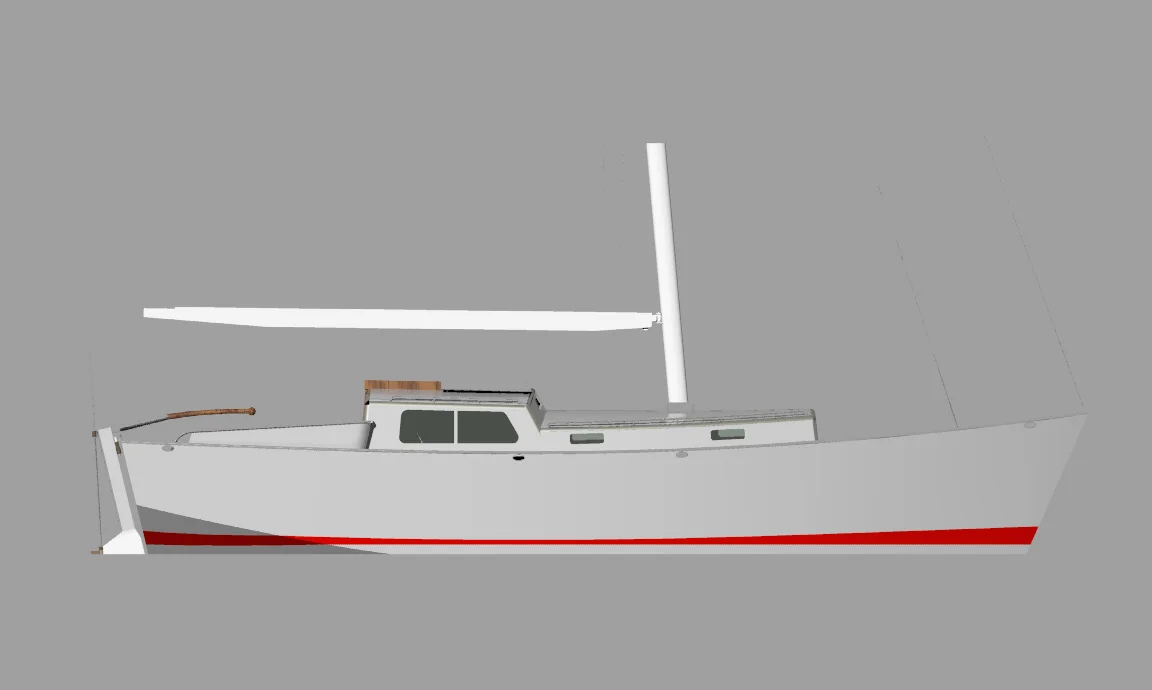

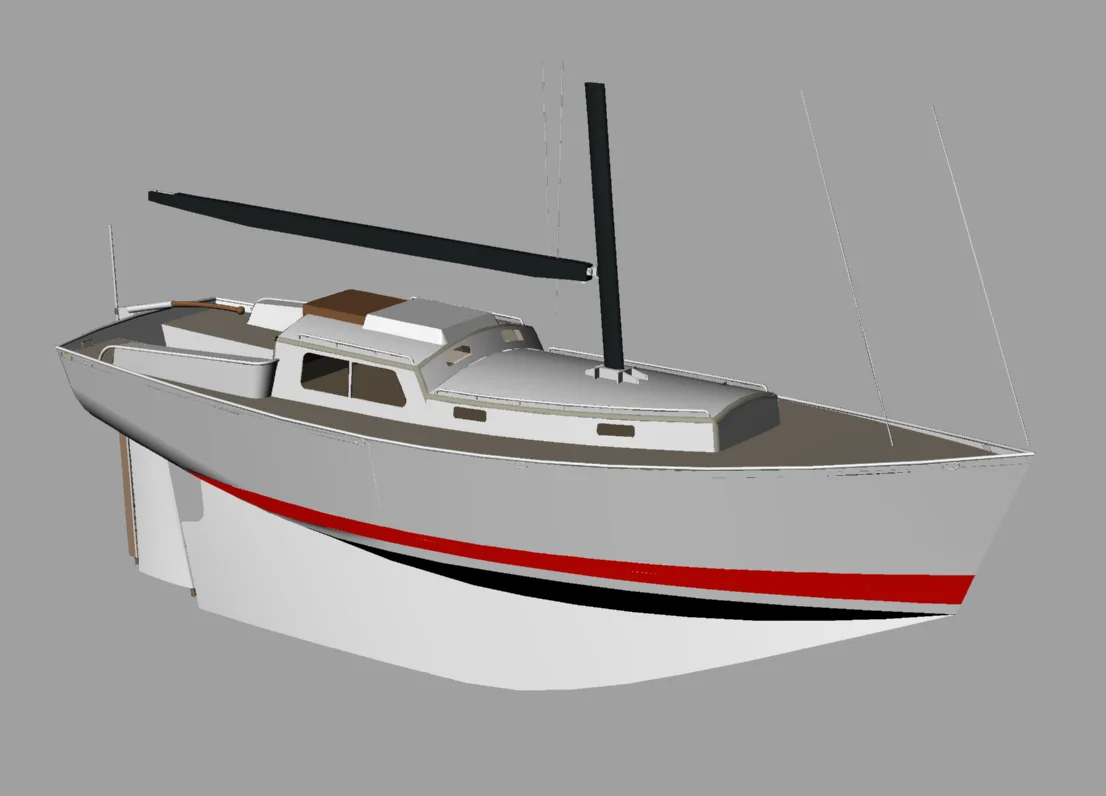

33’ Single chine, long keel steel boat; with transom stern, outboard rudder and a cutter rig.

With a simple interior and a classic appearance, this boat has been designed to travel.

L.O.A33’-4” x L.W.L30’-3” x Beam 11’-2” xDraft 5’-11” x SA. 732 sq/ft.

10.16M.            9.22M.             3.40M.           1.80M           68 sq/ft.

DRG.  931- 01   SAIL PLAN

DRG.  931- 02   MAST & RIGGING.

DRG.  931- 03   LINES PLANS - TABLE of OFFSETS.

DRG.  931- 04   ACCOMMODATION PLAN.

DRG.  931- 05   MIDSHIP CONSTRUCTION PLAN.

DRG.  931- 06   CONSTRUCTION PLAN.

DRG.  931- 07  DECK PLAN.

DRG.  931- 08  RUDDERPLAN.

DRG.  931- 09  CHAINPLATES-DETAILS.

US$500.00. Buy.

Add To Cart
